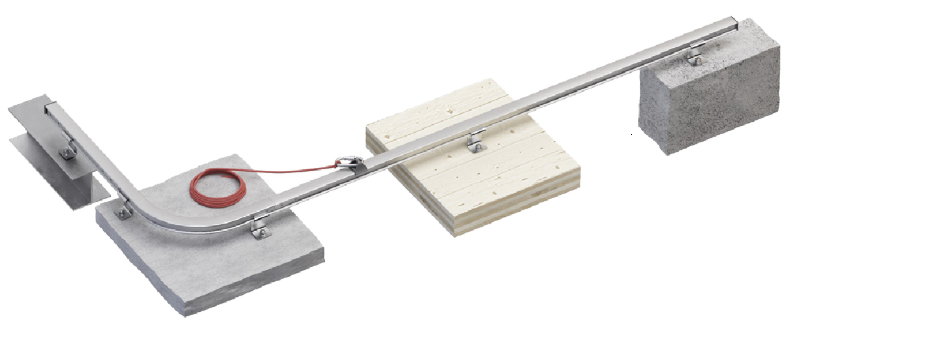

H-RAIL ON FLOOR
The rail features a low-profile design with minimal roof space occupancy and reduced visual impact, offers versatility for horizontal, vertical, and overhead applications using specialized sliding devices, and enables fast installation due to a wide fastening span (6m) that minimizes the number of required anchoring points.
控件[tem_25_34]渲染出错,Source:未将对象引用设置到对象的实例。
|
CODE |
H-RAIL ON FLOOR |
|
DESCRIPTION |
HORIZONTAL RAIL SYSTEM |
|
FEATURES |
THE RAIL FEATURES A LOW-PROFILE DESIGN WITH MINIMAL ROOF SPACE OCCUPANCY AND REDUCED VISUAL IMPACT, OFFERS VERSATILITY FOR HORIZONTAL, VERTICAL, AND OVERHEAD APPLICATIONS USING SPECIALIZED SLIDING DEVICES, AND ENABLES FAST INSTALLATION DUE TO A WIDE FASTENING SPAN (6M) THAT MINIMIZES THE NUMBER OF REQUIRED ANCHORING POINTS. |
|
RELEVANT STANDARDS |
EN 795:2012 D CEN/TS16415:2013 UNI11578:2015 D AS/NZS1891.4:2009 AS/NZS1891.2:2001 BS 8610:2017D1 - D2 - D3 - D5 |
|
SUBSTRUCTURES |
I-BEAMS；CONCRETE；TIMBERWORK |
|
MAXIMUM NUMBER OF USERS |
4PEOPLE |
|
TYPES OF APPLICATION |
 |
